Green Power Solutions
Hydrogen fuel cell systems
For marine applications, we provide start-to-end solutions from feasibility study, design, engineering, conversion, to construction and aftersales lifecycle services for your peace of mind and reduced downtime to your operations.

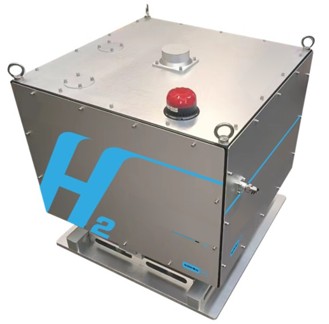

CCS-certified marine hydrogen fuel cell power system
Our hydrogen fuel cell systems are customizable to suit your vessel needs. | |
Rated power | 120 kW |
Output voltage range | 450 V – 750 V |
Rated efficiency | 40.40% |
Dimensions | 1550 x 1500 x 1330 (mm) |
Hydrogen production systems

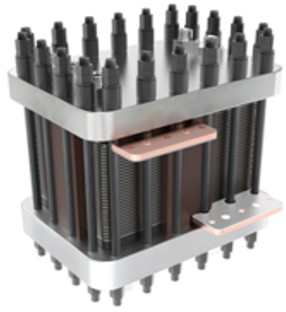

Producing hydrogen gas with our methanol reformer system eliminates the risk from the transportation and storage of high pressured gas cylinders. Specifications can be customized. Our alkaline water electrolyzers and proton exchange membrane electrolyzers enables lower energy consumption, higher overall efficiency and faster dynamic response can be achieved.
Methanol Reformer | |
Purity | H2 ≥ 99.99%, CO ≤ 0.2 ppm |
Hydrogen supply rate | 108 Nm3/h |
Alkali Electrolyzer | |
Purity | H2 ≥ 99.8% |
Hydrogen supply rate | 1000 – 1500 Nm3/h |
PEM Electrolyzer | |
Purity | H2 ≥ 99.9995% |
Hydrogen supply rate | 1000 – 1500 Nm3/h |

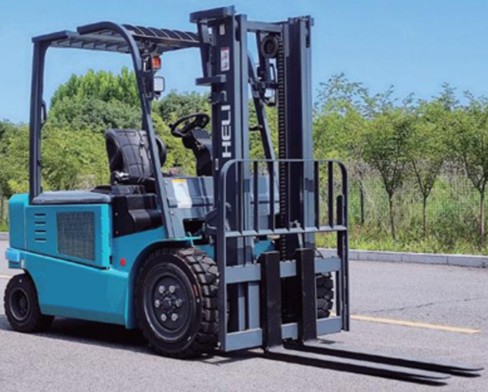

Hydrogen fuel cell industrial vehicles
Our fuel cells are capable of powering industrial vehicles from forklifts to container trucks.
Fuel cell battery | 15 kW |
Load capacity | 3500 kg |
|
Hydrogen consumption (kg/100km) |
7-10 |
|
Towing capacity (kg) |
37650 |

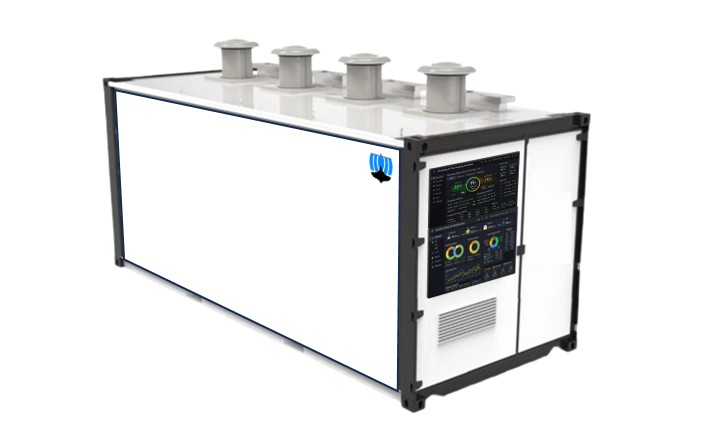

Hydrogen fuel cell mobile power station
Eliminate NOx and SOx emissions by integrating the methanol reformer and the hydrogen fuel cell system. Our modular container-sized mobile power station can generate up to 400 kW of power on demand without the risk from the transportation and storage of high pressured hydrogen gas cylinders. Refueling is as easy as refilling the tank with methanol. Furthermore, remote monitoring and control system ensures utmost safety for operators.
Hydrogen fuel cell specifications | |
Rated power | 400 kW |
Fuel storage | 6000 – 8000 L |
Energy storage | 30 kWh (customizable) |
Fuel consumption | 1 kg/kWh |
IP level | IP54 or better |
Operating environment | -10 °C to 40 °C |
Dimensions | 6000 x 2500 x 2600 (mm) |
Methanol reformer specifications | |
Purity | H2 ≥ 99.99%, CO ≤ 0.2 ppm |
Pressure | 1 – 2 bar |
Hydrogen supply rate | 108 Nm3/h @ 1 bar |

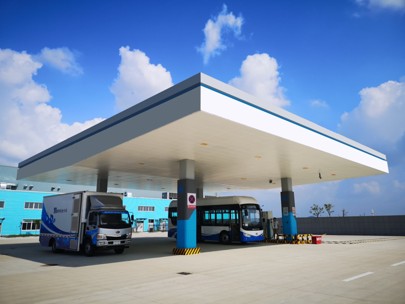

Hydrogen refueling / bunkering station
Operational and in-service stations further solidify our technology in providing a hydrogen fuel cell system solutions.
We can design, build, and support your requirement for a refueling / bunkering station with our in-depth know-how and engineering services.

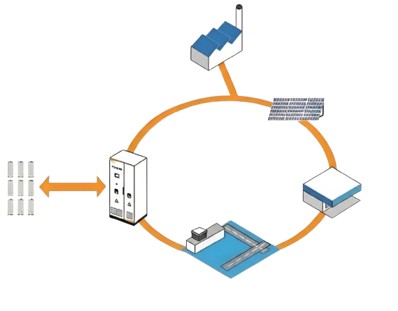

Integrated solar stations
Integrating solar panels, storage, charging stations and SMART EMS, our integrated SSC solution is a small scale power distribution system that addresses limited land and power capacity constraints while optimizing energy allocation through local energy production and storage.

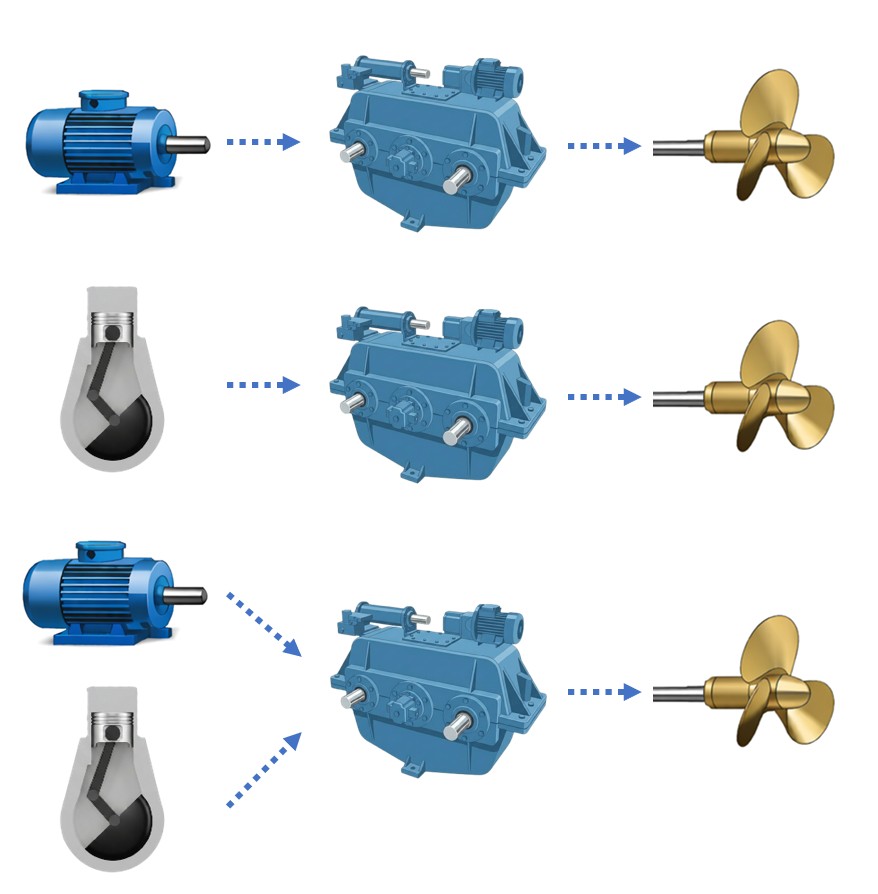

Green propulsion system solutions
Looking for a conversion to green propulsion? At Viking, we offer various green propulsion system solutions such as full electric, hybrid, and methanol combustion systems.
